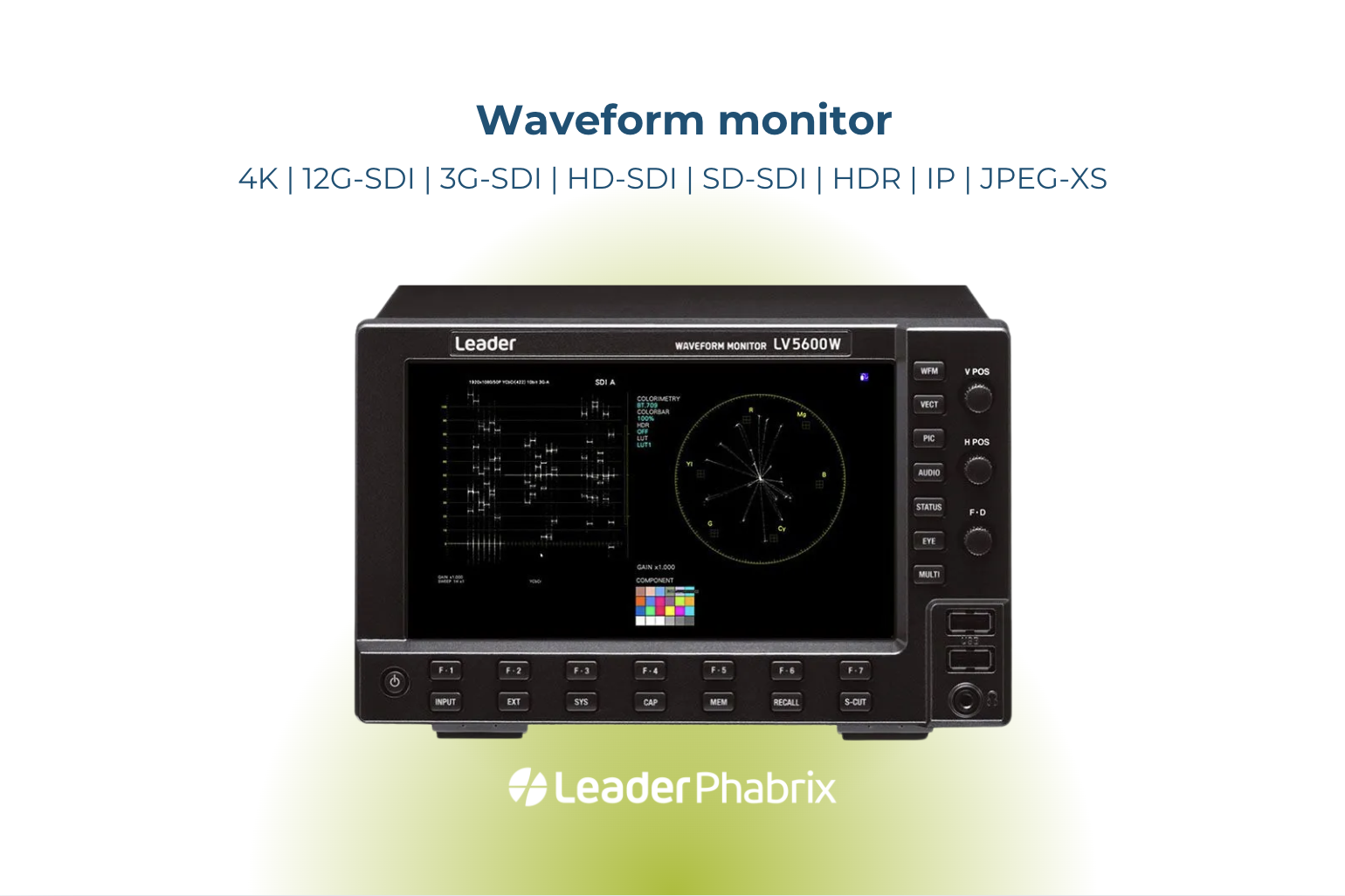

Behind its intriguing name, the LV5600W stands out as THE “True-Hybrid” waveform monitor, designed for optimal compatibility with 4K, HD, and SD-SDI signals, as well as UHDTV, HD, and SD streams over IP.
With its 7-inch touchscreen in a compact 3RU chassis with a built-in AC power supply, the LV5600W supports a variety of SDI signals up to 12G-SDI as well as video over IP.
Waveform, vector, image, audio, and eye pattern displays enable the analysis and quality assurance of a wide range of audio and video formats. Additionally, the status display simplifies error evaluation and system stability assessment with detailed long-term reports.
On the audio side, this tool supports digitally embedded audio in SDI or IP streams, as well as separate digital and analog audio connections. It also provides multichannel audio level display, Lissajous waveform visualization, signal status monitoring, and loudness measurement.
WebRTC Enabled
The LV5600W supports the Web Real-Time Communication interface. WebRTC allows secure remote control and monitoring from a web-connected desktop or laptop computer.

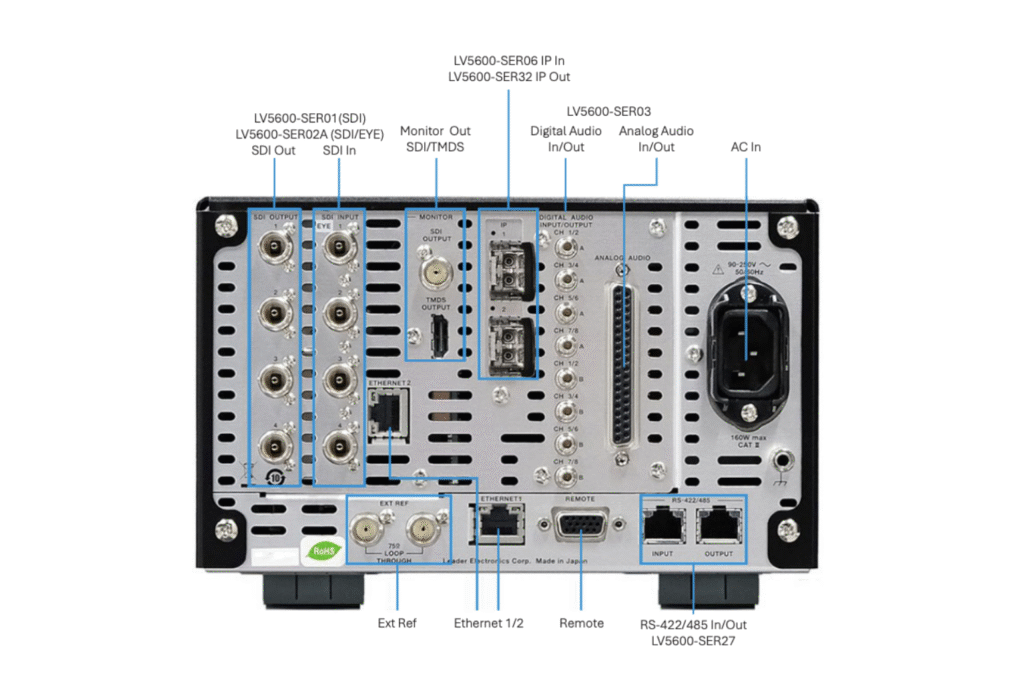

Rear Panel I/O
Adapted to each user
Thanks to the combination of a touchscreen, dedicated buttons and dials, and user-defined screen layouts, the LV5600W enables quick execution of complex measurement and monitoring tasks.

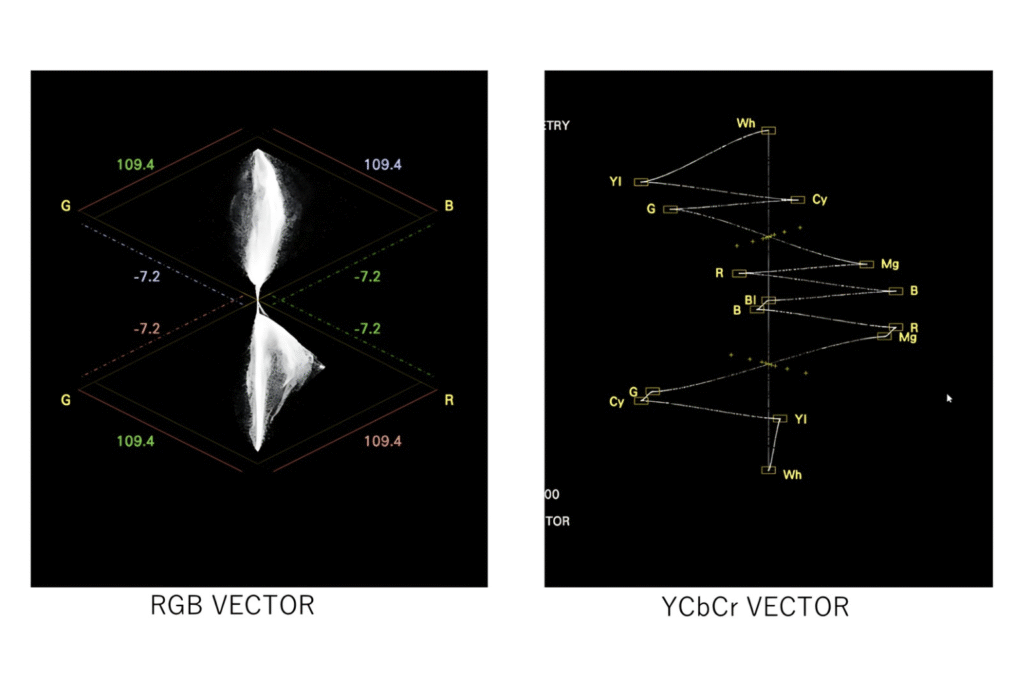

Extended vectorscope
