Leader: test & measurement toolkit
Leader offers high-performance measurement instruments tailored to the specific needs of the video industry, including television, film, and streaming media. Leader’s products integrate the latest digital measurement and monitoring technologies, serving broadcasters, producers, distributors, editors, and equipment manufacturers around the world.
Leader offers four lines of solutions:
Waveform Monitors

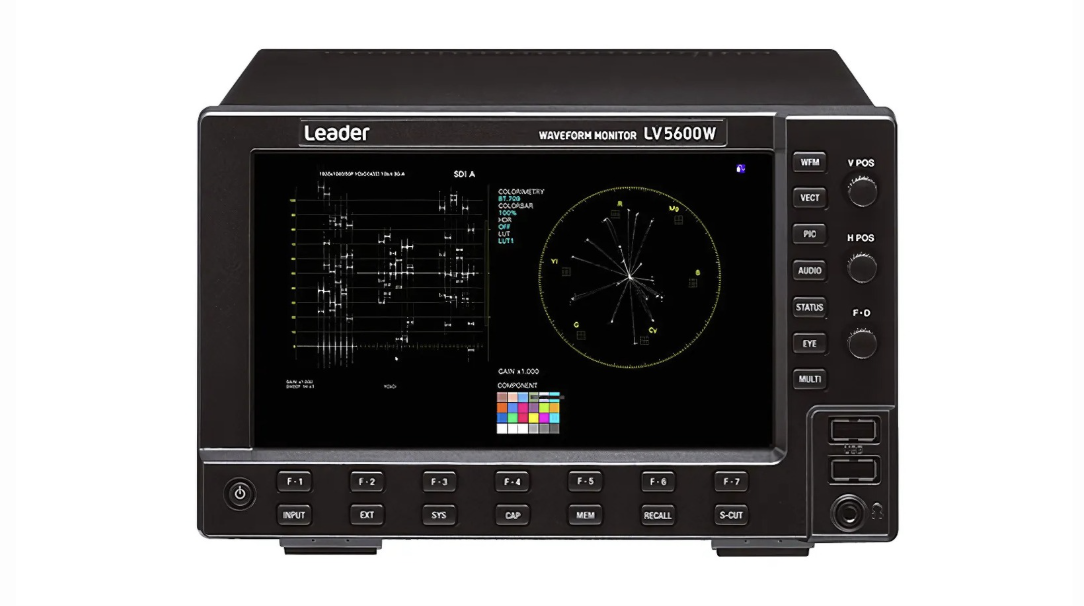

LV5600W
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | IP | HDR
The LV5600W is a ‘True-Hybrid’ Waveform Monitor compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV5600W features a 7-inch touch screen display in a compact 3RU enclosure with built-in AC power supply, and supports a variety of SDI signals up to 12G-SDI as well as video over IP.
With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5600W allows complex measurement and monitoring tasks to be quickly completed. Designed with the future in mind, the LV5600W addresses your current and evolving video and audio testing needs.
Key features
Handheld/Portable

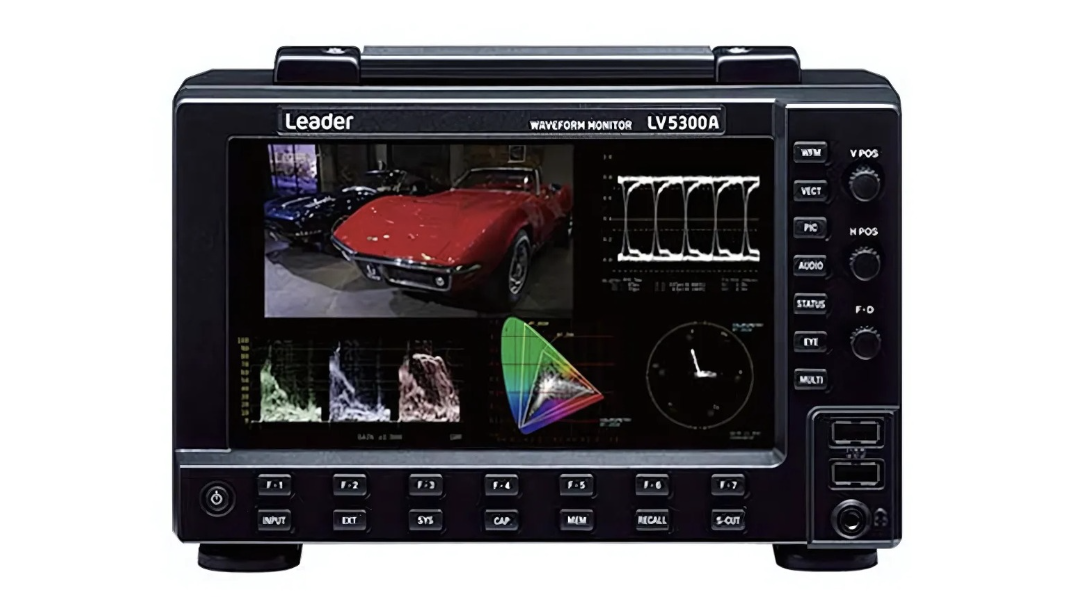

LV5300A
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | HDR with Eye
The LV5300A Waveform Monitor is a compact yet powerful solution designed to handle SDI signals from SD to 12G, with advanced physical layer testing capabilities. This product features a 3U half-rack, short-depth design, incorporating a 7-inch touchscreen display along with a comprehensive set of buttons and control knobs for intuitive operation.
Equipped with a DC power input, the LV5300A is ideal for environments where AC power is unavailable. Additionally, it can be battery-operated with an optional battery mount, making it highly portable.
Combining its touchscreen interface, dedicated buttons, and customizable screen layouts, the LV5300A allows users to complete complex measurement and monitoring tasks swiftly and efficiently, in virtually any setting.

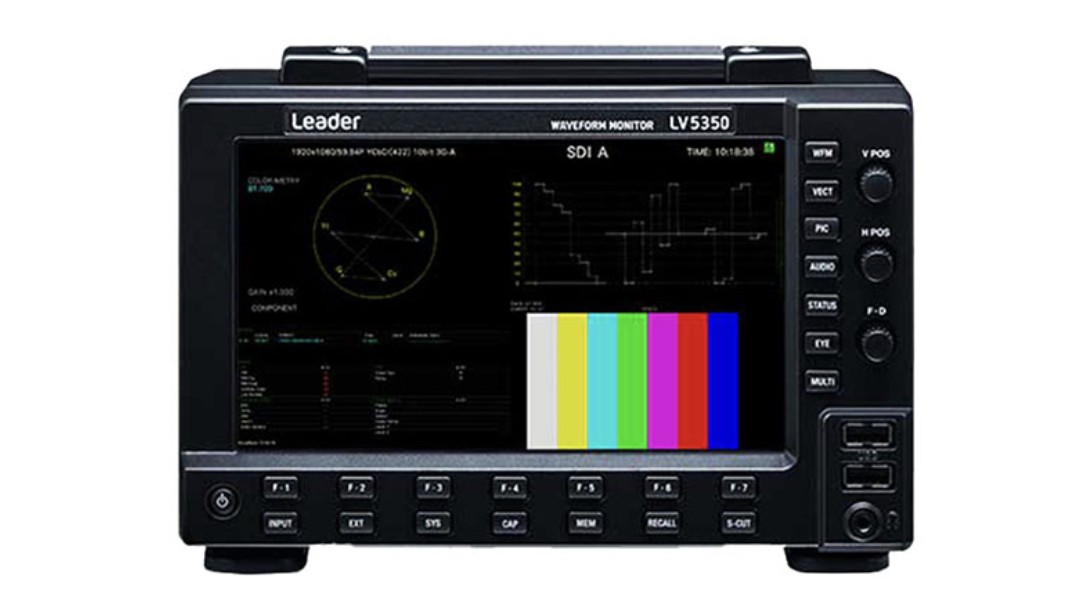

LV5350
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | HDR
The LV5350 Waveform Monitor offers a compact design without compromising on performance, supporting SDI signals from SD to 12G rates. This 3U half-rack, short-depth monitor features a 7-inch built-in touchscreen, complemented by a full set of buttons and control knobs for seamless operation.
With a DC power input, the LV5350 can be deployed in locations where AC power isn’t available. It also offers the flexibility to run on battery power with an optional battery mount, making it ideal for on-set use or in challenging environments.
The combination of its touchscreen, dedicated buttons and knobs, and customizable screen layouts enables efficient handling of complex measurement and monitoring tasks with ease.
Rasterizers

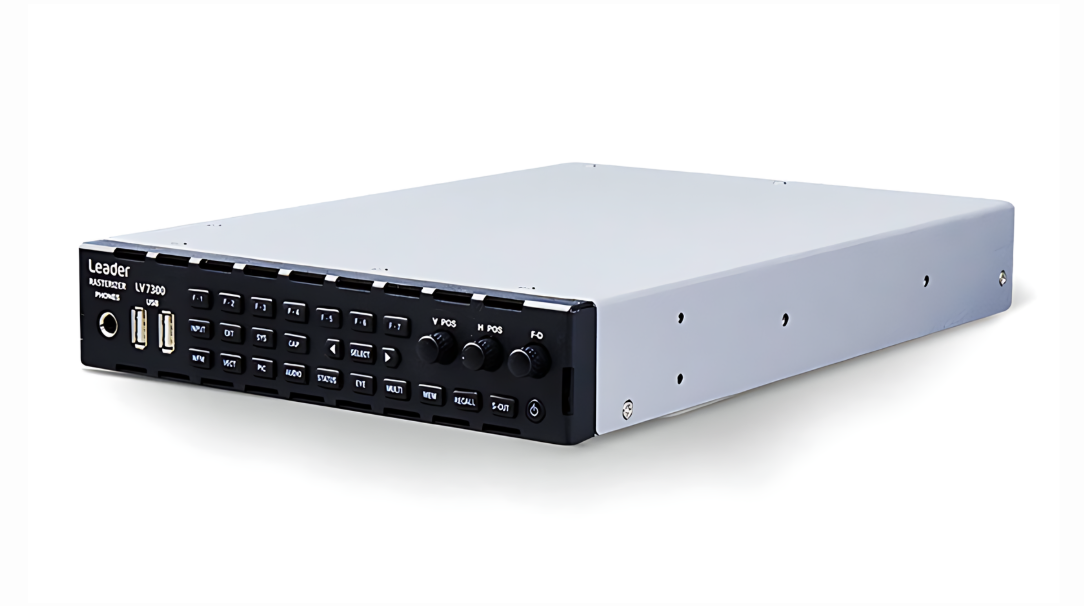

LV7300
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | HDR
The LV7300 Rasterizer delivers compact performance, supporting SDI signals from SD to 12G rates and offering advanced physical layer testing. Designed as a 1U half-rack unit, the LV7300 is a space-saving solution for professional environments.
With capabilities such as waveform, vector, picture, and audio analysis, it provides simple yet thorough measurement and quality control across a wide range of audio and video formats. The status display gives a clear overview of errors and system stability through event logs and long-term charts, while embedded SDI audio can be monitored using level meters, Lissajous, and status displays.
The LV7300 also includes a DC power input, making it ideal for use in locations where AC power is unavailable.

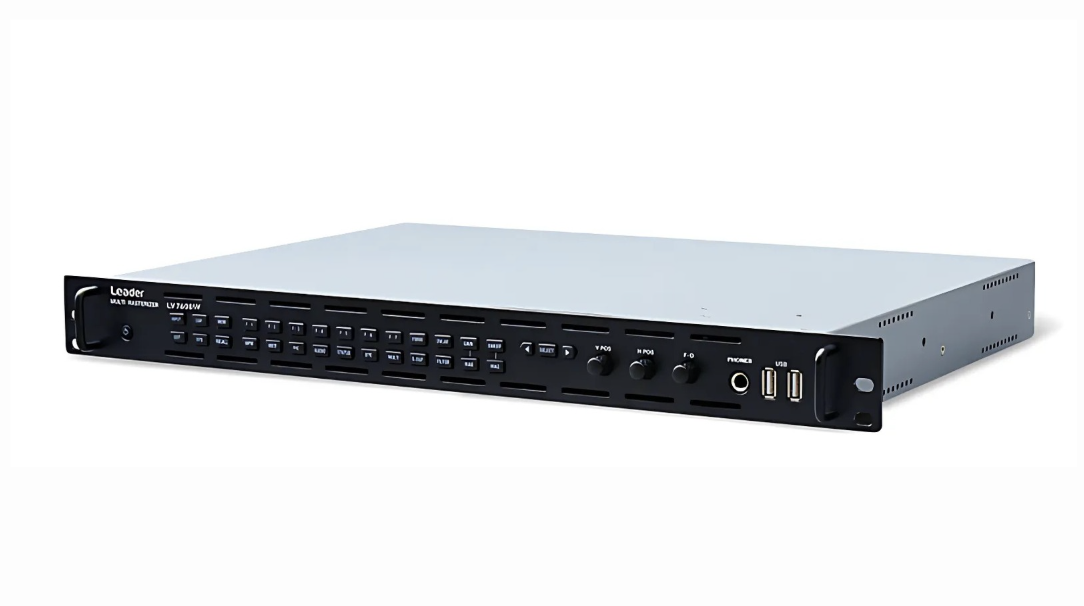

LV7600W
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | IP | HDR
The LV7600W is a ‘True-Hybrid’ rasterizer, fully compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. Housed in a 1RU full-rack enclosure, it offers the same powerful functionality as the LV5600, supporting a wide range of SDI signals up to 12G-SDI, as well as video over IP.
With its fully customizable screen layout, the LV7600W efficiently handles complex measurement and monitoring tasks. Built with future-proofing in mind, the LV7600W is designed to meet both your current and evolving video and audio testing requirements.
Sync Generator

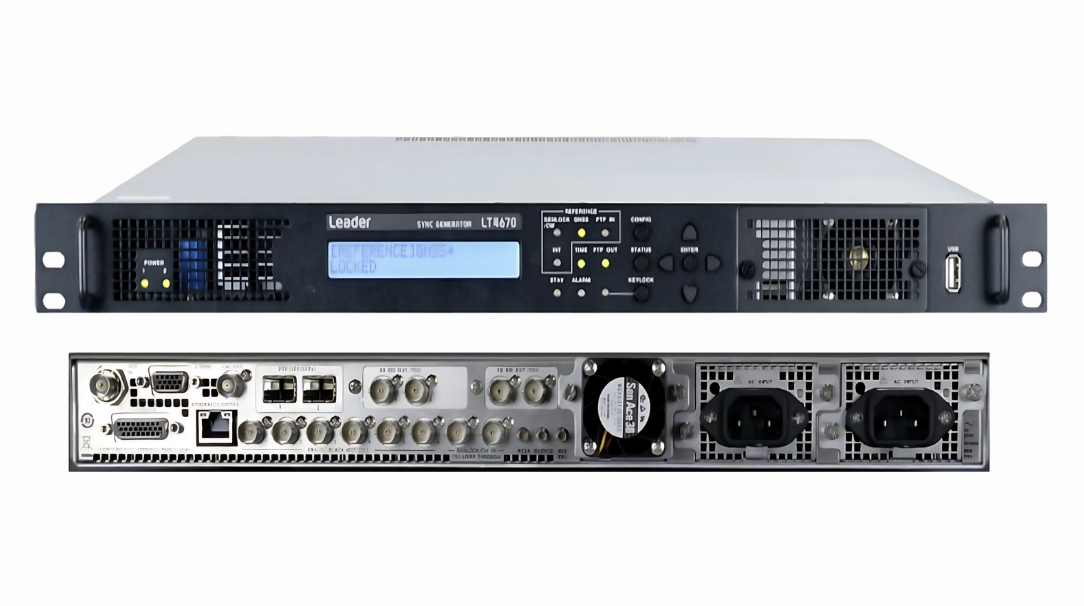

LT4670
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | PTP
The LT4670 is a 1U full-rack synchronous signal generator that outputs a variety of signals, including PTP, GNSS, (4K/HD) IP, 4K 12G, (3G/HD/SD) SDI, analog synchronous signals, AES/EBU, audio word clock, and LTC, all synchronized to analog video sync signals.
The PTP functionality operates as a grandmaster and features two independent PTP reader functions, along with a PTP follower function, ensuring versatile synchronization capabilities.
Need more information about Leader solutions?
Ask for a demo or a quote!
News from Leader
-
Cygnus: optical transport solution for the Sony ILME-FR7 PTZ camera by Bluebell 🎥
With the growing adoption of PTZ cameras in broadcasting, Bluebell introduces Cygnus, an optical transport system specifically designed for the […]BluebellRead the article -
🚨 New Product Alert: PEC 1464 from Lynx | 12G-SDI/HDMI Streamer and Recorder
The PEC 1464, available from early Q4, is designed to simplify the process of streaming and recording high-quality video. With […]LynxRead the article -

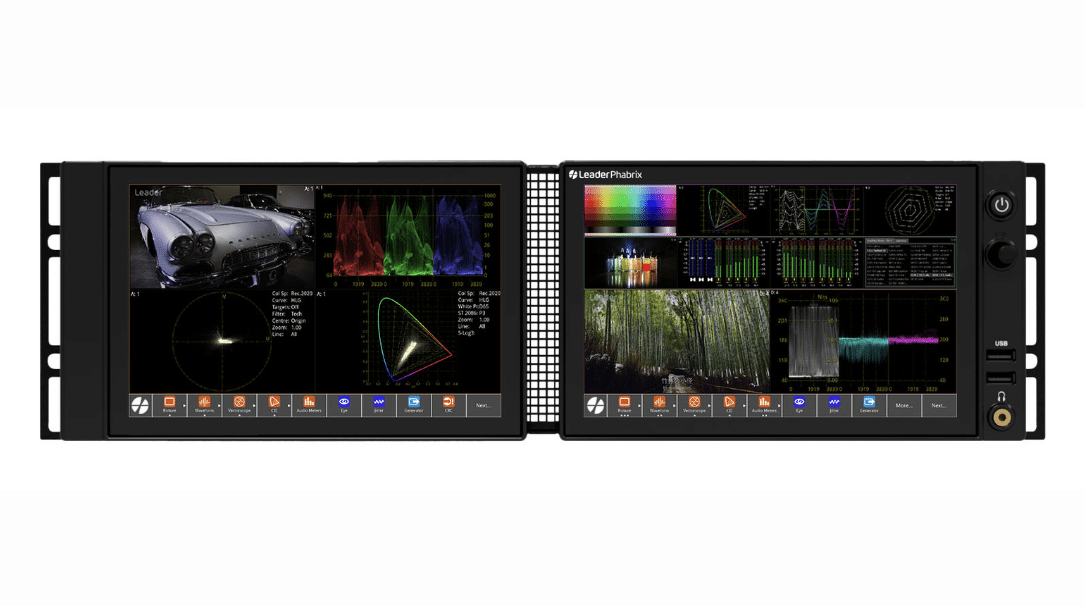

Best of Show at IBC 2024: discover the new Waveform Monitor from PHABRIX | Leader 🏆
