Craltech designs, develops and manufactures high quality systems and equipment for professional video applications. This includes solutions for broadcasting, industrial, advertising and information systems. The products are both designed and manufactured in Craltech facilities in Barcelona.
Craltech offers various categories of solutions:
Professional Monitors

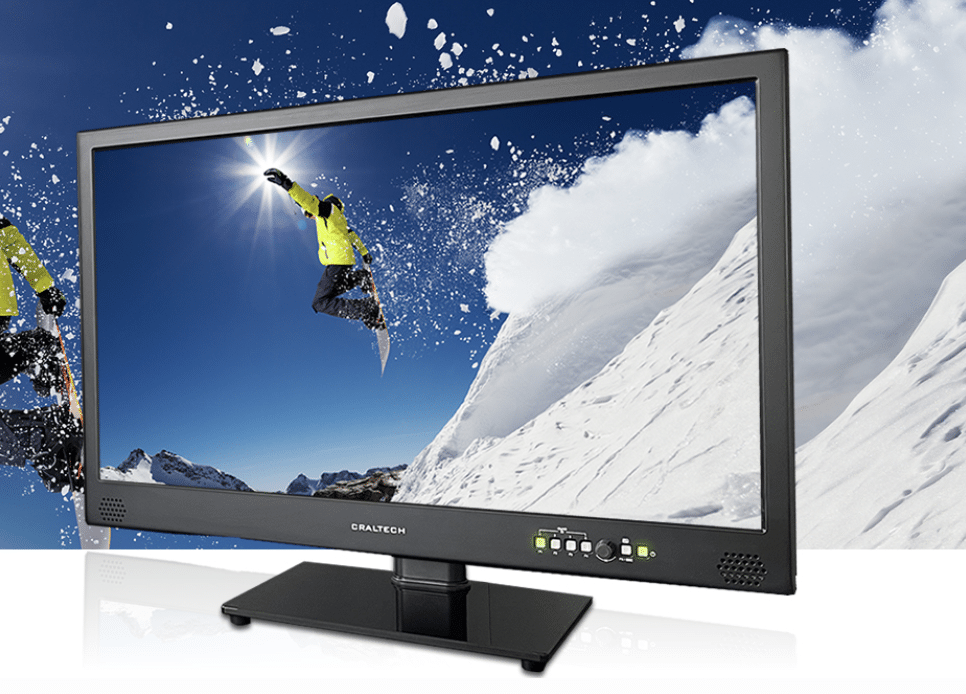

SLX-SERIES: HDR Bright 4K 12G Monitors
The latest 27″ HDR Native 4K premium LCD monitor features 12G SDI IN, Quad-Split MOD, 800 nits and an ultra-light design.
Display: 27″, 3840 x 2160, 800 nits
12G Inputs/Outputs: 2 x 12G SDI in with loop
3G Inputs/Outputs: 2 x 3G SDI in, 2 x 3G SDI in/out configurable
Other Inputs: 1 x 4K HDMI in, 1 x SFP Slot

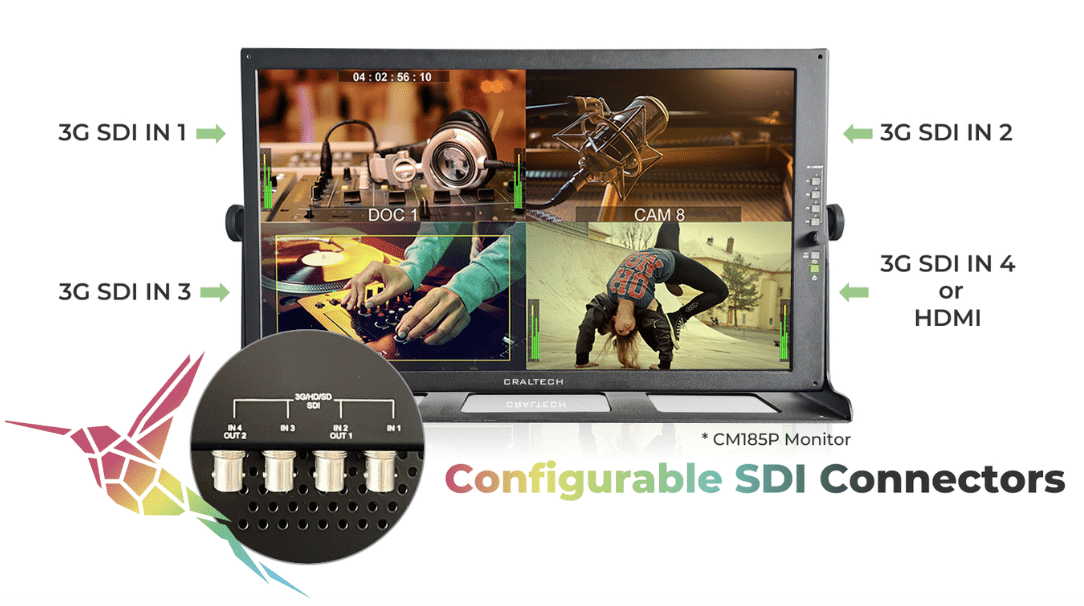

SLX-SERIES: NEW 3G HDR Production Monitors
The SLX-SERIES of professional HDR LCD Production Monitors features 2 x 3G/HD/SD-SDI, 1 x HDMI and 2 free configurable 3G SDI BNC connectors. With Quad MODE, display 4 x 3g SDI inputs on screen, or use them as active loop through SDI inputs 1 & 2.
For accurate reproduction of all standard sources, this new series integrates a 12 bit image processing engine, HDR pre-visualization (HLG, PQ, SLOG) options and 3D LUT color management options.
Thanks to its ultra-lightweight, aluminium design and wide viewing angle displays, the monitors are easy to integrate. The energy-efficient board design and LED backlight displays help the equipment maintain a low temperature while running.
The classic ultra-light monitor sizes include: 18,5″ / 21,5″ / 23,8″ / 32″. Optional 2 x 12G + SFP Slot Input Board for all sizes.
SLX-SERIES: HDR High Bright Production Monitors
With the same features as the classic ultra-light SLX monitors, the High Bright models are ideal for HDR display. These high brightness monitors provide 600-1500 nits of brightness depending on monitor size. Sizes include: 21,5″/ 23,8″/ 24″/ 32″/ 42″.
5 models are currently available:
- CM215BSLX (21.5″, 1500 nits)
- CM238BSLX (23.8″, 600 nits)
- CM240BSLX (24″, 900 nits)
- CM320BSLX (32″, 1500 nits)
- CM420BSLX (42″, 700 nits)
Optional 2 x 12G + SFP Slot Input Board for all sizes.
4k Multiviewers
4KCRAFT ONE | DUO | QUATRO: 4K Modular Multiviewer
The 4KCRAFT is a compact (1RU) 4K Modular Multiviewer. It offers a high quality image processing engine with a low processing delay. Its modular design allows for custom solutions with up to 16 inputs (12G/3G/HD/SD SDI or HDMI), displayed simultaneously on-screen in any size and position, and up to 4 outputs (3G/HD/SD SDI) or a single 4K HDMI output.
Store six layouts in the 4KCRAFT system. The lightweight, 1RU aluminum design is also fanless and energy-efficient, maintaining a low temperature while running.
- 4KCRAFT-QUATRO : 4 x 3GSDI OUTPUTS and 1 x HDMI 4K UHD up to 50/60hz OUTPUT
- 4KCRAFT-DUO : 22 x 3GSDI OUTPUTS and 1 x HDMI 4K UHD up to 25/35hz OUTPUT
- 4KCRAFT-ONE : 1 x 3GSDI OUTPUT and 1 x HDMI 4K UHD up to 25/35hz OUTPUT

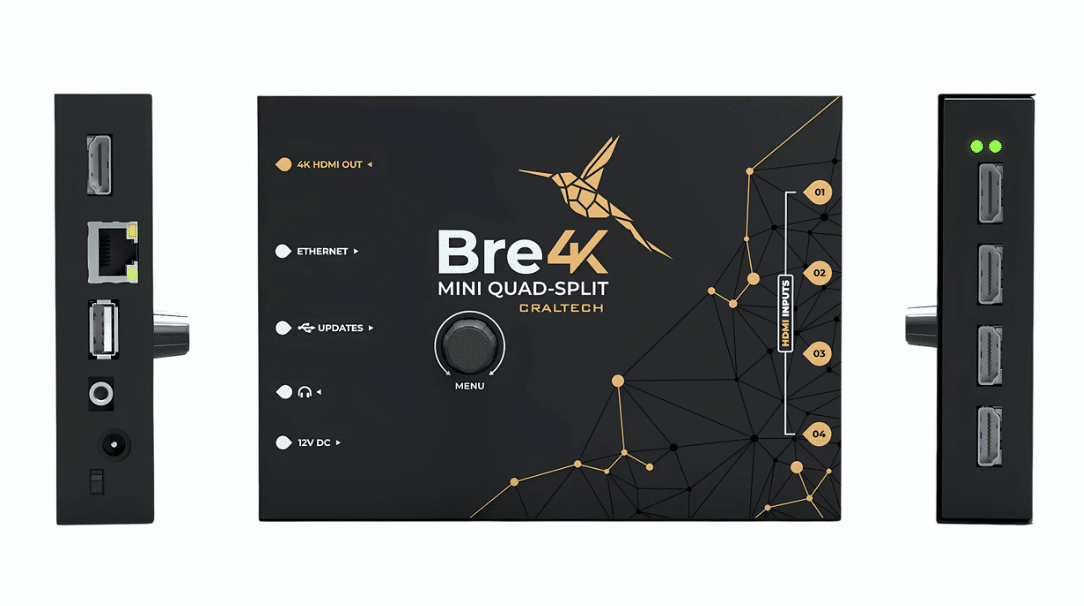

Bre4K : 4K HDMI Quad-Split
Bre4K is a compact, 4K HDMI quad-split multiviewer with an excellent image quality processing engine and low processing delay. It allows up to 4 full HD HDMI sources to be displayed simultaneously on a 4K UHD screen or projector. With its aluminium design, Bre4K is lightweight, fanless and energy-efficient. It also includes an Ethernet connector, allowing for control remotely using drag and drop Remote Control Software (SNMP compatible).
Additional features include 8 channel audio level meters (embedded audio) with selectable format (vertical or horizontal), no audio/silence/no input & black image on screen alarms, markers & safety areas, aspect ratio selection (4:3, 16:9), quick control: encoder, real time color waveform & vectorscope per inputs.
Video Processors/KVM

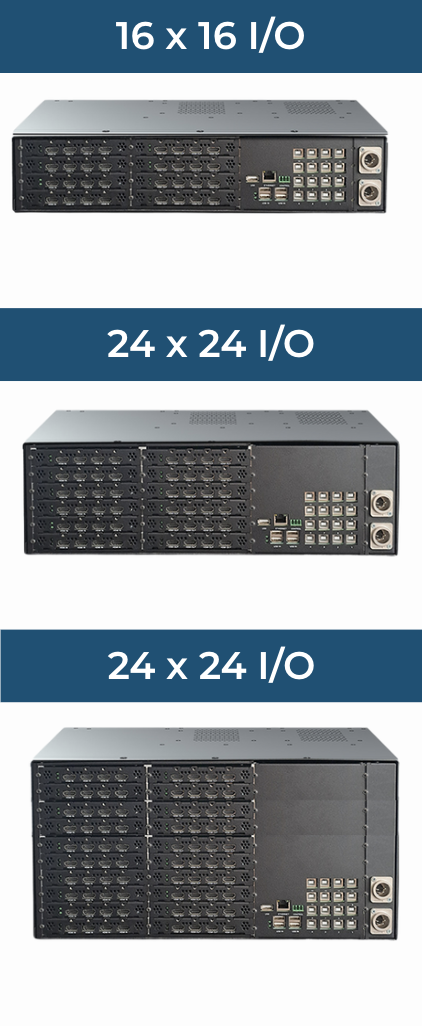

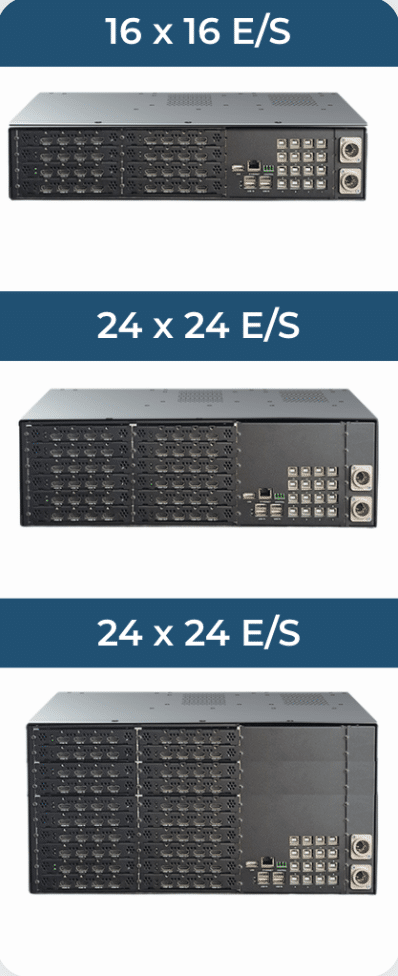

ScreenBridge MODS

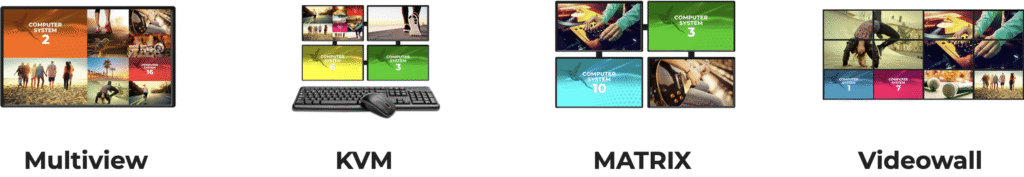

The ScreenBridge is the first all-in-one video processor specifically designed with Matrix, Switcher, Multiviewer, KVM and VideoWall options. Switch, distribute, and monitor multiple HDMI sources with ScreenBridge!
Select and upload a MOD to easily control and manage all sources. Thanks to this modular system, design and build fully customizable solutions configurable to match any requirements. I/O cards accommodate various connectivity requirements. Depending on the MOD installed, ScreenBridge has 16 inputs and 16 outputs (2U) or 24 inputs and 24 outputs (3U) configurable as single screens, edge-blend widescreens, multiviewer and KVM options.
This high-end video processor provides versatile connectivity as well as an unmatched real-time 10/12-bit video processing engine. With ultra-low latency (less than 1 frame), it offers best-in-class image quality.

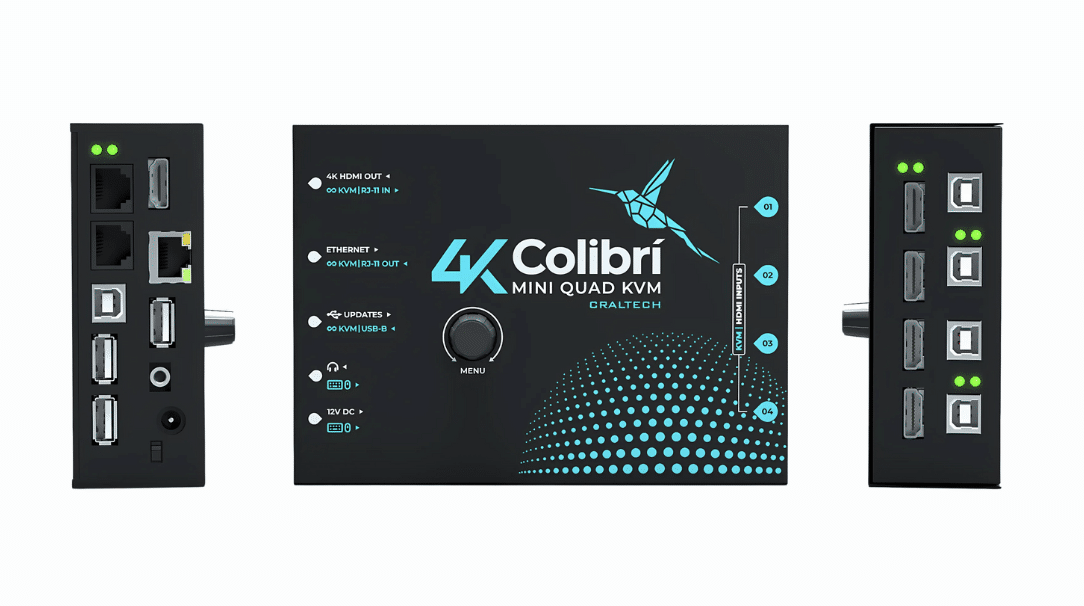

Colibrí Quad-Split KVM
Colibrí is a unique Quad-Split KVM providing seamless connectivity and infinity KVM cascading capability. Easily surf 4 HDMI sources on a 4K monitor or TV with one mouse and keyboard.
This processor revolutionizes the workspace with 4 x FHD HDMI inputs and a 4K output. Effortlessly control multiple displays from a single workstation. It also features an intuitive interface ensuring hassle-free setup and operation for all users. Applications range from control rooms to gaming setups.
Need more information on Craltech products?
Ask for a demo or a quote!
