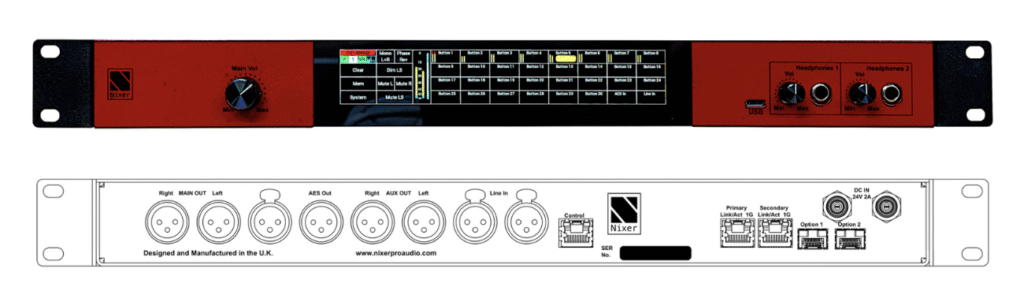

The Nixer RLC64 CV1 is an Audio over IP (AoIP) monitoring unit designed for sound professionals working in live events. Housed in a compact 1RU 19” rack, it combines performance, simplicity, and reliability.
Ergonomics and intuitive control
Large front-panel volume knob for main output control.
Two independent headphone outputs with high-quality amplifiers, capable of driving low-impedance headphones.
Color LCD display with capacitive touch interface, ensuring smooth navigation and comfortable use even in low-light environments.
Comprehensive connectivity
64 AoIP inputs (configured in stereo pairs) accessible via a 32-switch matrix.
Hold mode for simultaneous monitoring of multiple sources.
Analog and digital I/O:
- 2 female XLR (Line In)
- 1 female XLR (AES In)
- 1 male XLR (AES Out)
- 4 male XLR for main outputs (pre and post volume control).
- Primary and secondary RJ45 AoIP ports, plus a dedicated Control port.
Reliability and updates
Dual 24V DC power inputs with locking system to prevent accidental disconnection and ensure redundancy.
Simple firmware updates via a USB-C front-panel connector.
Compatible with external NIX00629 power supply (sold separately).
