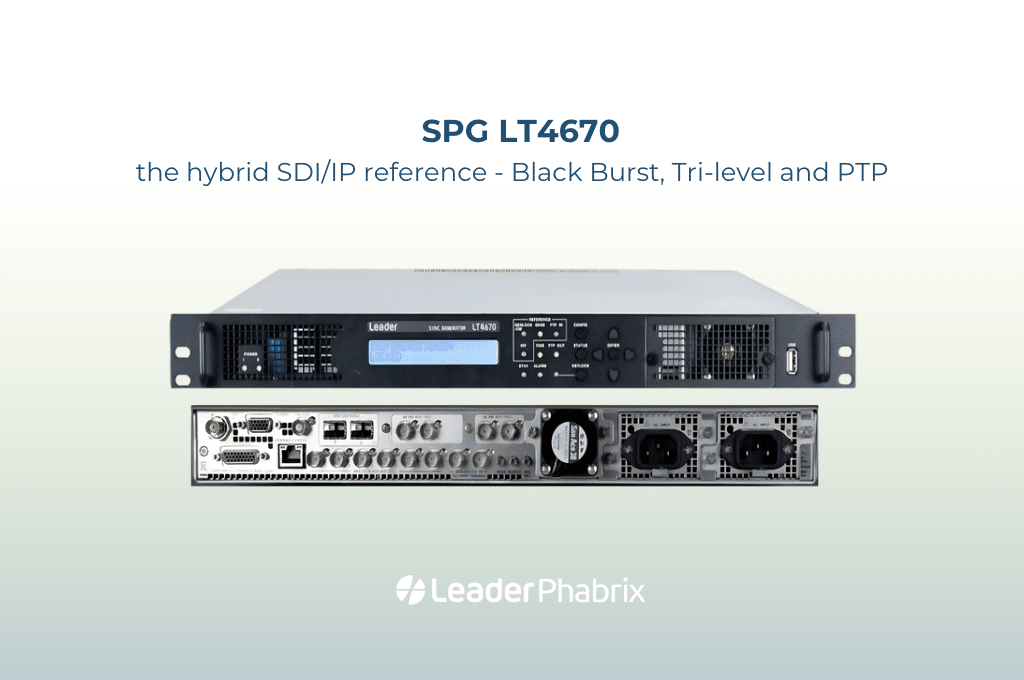

As broadcast and production environments continue to merge traditional and IP-based infrastructures, the LT4670 emerges as a cutting-edge sync generator tailored for hybrid workflows. Designed to bridge the gap between legacy systems and modern IP networks, it’s an ideal fit for broadcasters, production studios, and live operations.

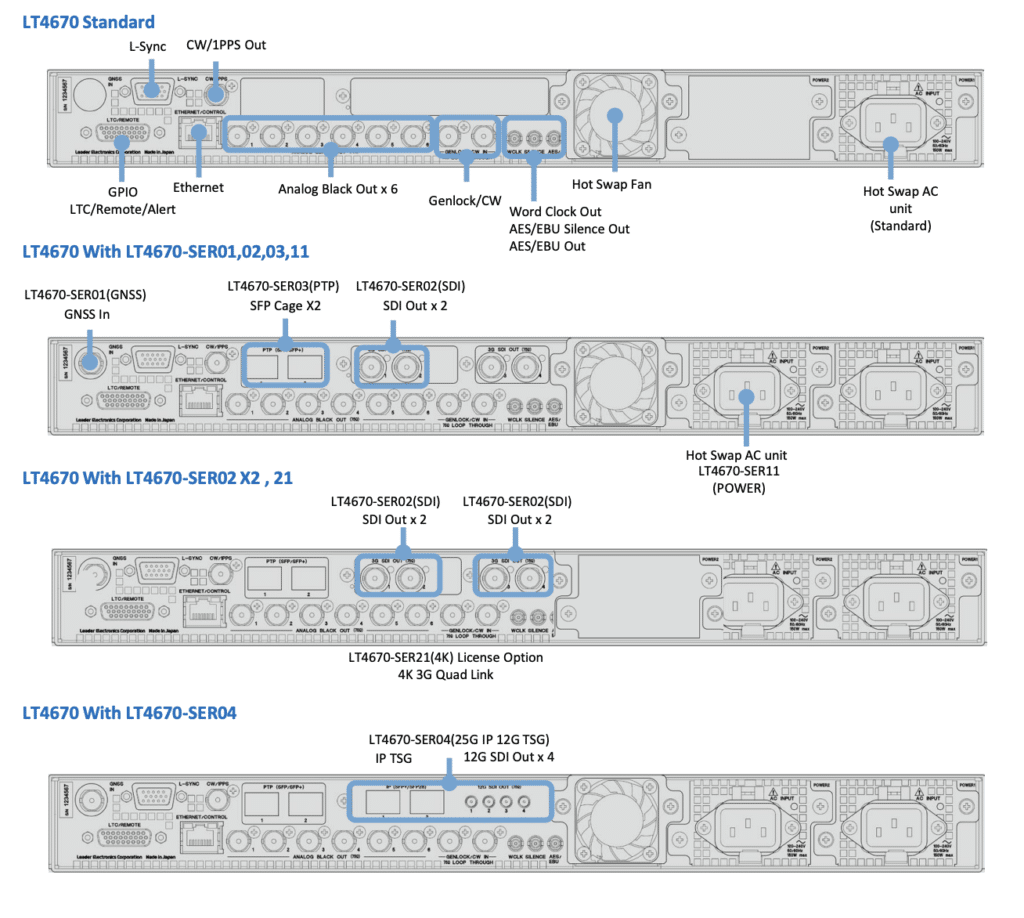

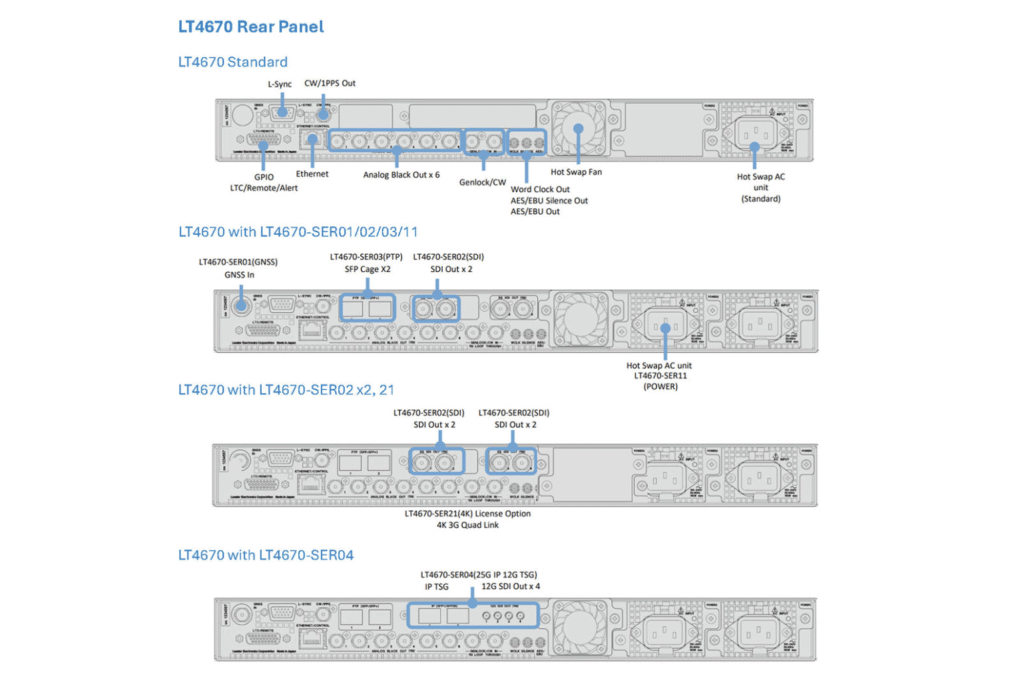

This full 1U rack-mounted unit supports a comprehensive range of signals: PTP, GNSS, 4K/HD IP, 12G-SDI, 3G/HD/SD-SDI, analog sync, AES/EBU digital audio, word clock, and LTC. It ensures seamless synchronization across both SDI and IP systems and is compatible with Black Burst, Tri-level sync, and PTP standards.
The LT4670 can serve as a PTP grandmaster, and uniquely features two independent channels that can each act as leader or follower on the network. It comes equipped with six independent analog sync outputs, digital audio, LTC I/O, and advanced functions like L-SYNC.
Highly configurable, the LT4670 can be customized with optional modules including GNSS sync, 4K/HD IP output, 4K 12G-SDI, and more—making it a powerful tool for managing synchronization across a wide variety of system architectures.
