PHABRIX offers a range of IP solutions, perfect for those developing, installing, commissioning and utilizing SMPTE ST 2110 and 2022-6 IP and SDI systems. More specifically, PHABRIX provides their QxL rasterizer (UHD/4K facilities and R&D environments), Qx (Full UHD/HD-SDI support) and SxTAG (IP, 3G/HD/SD-SDI, optical SDI, HDMI and Analog applications).

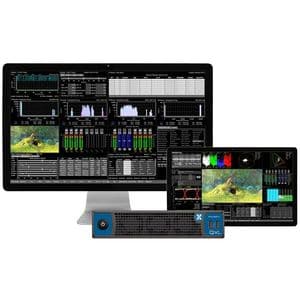

QxL : UHD/4K over IP for 25GE applications
- Supports up to ST 2110 UHD/4K payloads on 25G IP networks with 2022-7 and dual PTP
- 2110-20/30/31/40 flows with Class C audio (80 channels of audio in a single flow)
- Supports ST 2110-20 2K/HD, 4K/UHD video, 2110-30/31 PCM/AES audio, and 2110-40 Ancillary (ANC) flow generation
- Powerful IP Measurement toolset option
- Inherits JT-NM tested processing from Qx
- JT-NM AMWA NMOS IS-04 & IS-05 support
- 12G capable SDI I/O options with Physical Layer SDI analysis (Eye & Jitter)
- Remote monitoring via VNC. KVM extender supported. Automated control via REST API.
Qx : HD/3G over IP for 10GE applications
- Optional ST 2110-20/30/31/40 HD/3G payload support for 10G IP networks with 2022-7 and dual PTP
- Class C audio support (80 channels of audio in a single flow)
- Powerful IP Measurement toolset option
- JT-NM AMWA NMOS IS-04 & IS-05 support
- JT-NM Self Tested Spring 2020 (2110 and NMOS)
- HD/3G-SDI payloads as standard (additional payloads optional)
- Physical Layer SDI analysis (Eye & Jitter) option
- Remote monitoring via VNC. KVM extender supported. Automated control via REST API.
SxTAG : 3G/HD/SD Generation, Analysis, Gateway for line-checking applications
- Portable line-checking tool for testing ST 2110 & 2022-6 IP streams
- ST 2110 & 2022-6 content generator and analyzer toolset for 10GE IP applications
- Tx/Rx instrument windows for network configuration & monitoring
- JT-NM Self Tested Spring 2020 (2110 and NMOS)
- SDI-to-IP and IP-to-SDI gateway functionality for working across SDI/IP boundaries
Contact us for more information about PHABRIX IP solutions.
